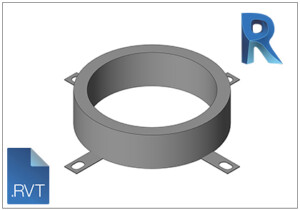

Low Profile Fire Collars

  • The low profile pipe collars are designed to be installed in concrete, brick or masonry fire rated walls and floors, and fire rated plasterboard walls. The Allproof pipe collars consist of intumescent material encased in a steel surround with fixing tabs. The advanced intumescent technology allows Allproof to achieve a very low profile height of only 27mm for the 25-80mm pipe collars.

    When fire occurs the intumescent material expands against the steel surround as the flammable plastic pipe running through the collar melts and burns away. The steel casing acts as an excellent heat sync ensuring fast activation of the intumescent, forming a stable fire resistant plug, maintaining both fire integrity and insulation.



    Pipe collars are designed to be exposed in a wall or floor application (i.e. face fixed). The collars should always be fixed to the underneath of the concrete floor. In wall situations one collar should be used on each exposed side of the fire rated wall.



    Full Brochure

    Brochure
    25mm

    25mm

    40mm

    40mm

    50mm

    50mm

    65mm

    65mm

    80mm

    80mm

    100mm

    100mm

    150mm

    150mm

    Code  Description  .pdf File CAD File
    ALLFC25GALV  Allproof Low Profile Fire Collar to suit 25mm pipe Galvanised Steel

    ALLFC25.pdf ALLFC25.pdf(252 KB)

    ALLFC25.dxf ALLFC25.dxf(260 KB)

    ALLFC40SS  Allproof Low Profile Fire Collar to suit 40mm pipe Stainless Steel

    ALLFC40.pdf ALLFC40.pdf(219 KB)

    ALLFC40.dxf ALLFC40.dxf(6255 KB)

    ALLFC40GALV  Allproof Low Profile Fire Collar to suit 40mm pipe Galvanised Steel

    ALLFC40.pdf ALLFC40.pdf(219 KB)

    ALLFC40.dxf ALLFC40.dxf(6255 KB)

    ALLFC50SS  Allproof Low Profile Fire Collar to suit 50mm pipe Stainless Steel

    ALLFC50.pdf ALLFC50.pdf(225 KB)

    ALLFC50.dxf ALLFC50.dxf(329 KB)

    ALLFC50GALV  Allproof Low Profile Fire Collar to suit 50mm pipe Galvanised Steel

    ALLFC50.pdf ALLFC50.pdf(225 KB)

    ALLFC50.dxf ALLFC50.dxf(329 KB)

    ALLFC65SS  Allproof Low Profile Fire Collar to suit 65mm pipe Stainless Steel

    ALLFC65.pdf ALLFC65.pdf(228 KB)

    ALLFC65.dxf ALLFC65.dxf(5513 KB)

    ALLFC65GALV  Allproof Low Profile Fire Collar to suit 65mm pipe Galvanised Steel

    ALLFC65.pdf ALLFC65.pdf(228 KB)

    ALLFC65.dxf ALLFC65.dxf(5513 KB)

    ALLFC80SS  Allproof Low Profile Fire Collar to suit 80mm pipe Stainless Steel

    ALLFC80.pdf ALLFC80.pdf(235 KB)

    ALLFC80.dxf ALLFC80.dxf(6153 KB)

    ALLFC80GALV  Allproof Low Profile Fire Collar to suit 80mm pipe Galvanised Steel

    ALLFC80.pdf ALLFC80.pdf(235 KB)

    ALLFC80.dxf ALLFC80.dxf(6153 KB)

    ALLFC100SS  Allproof Low Profile Fire Collar to suit 100mm pipe Stainless Steel

    ALLFC100.pdf ALLFC100.pdf(253 KB)

    ALLFC100.dxf ALLFC100.dxf(443 KB)

    ALLFC100GALV  Allproof Low Profile Fire Collar to suit 100mm pipe Galvanised Steel

    ALLFC100.pdf ALLFC100.pdf(253 KB)

    ALLFC100.dxf ALLFC100.dxf(443 KB)

    ALLFC150SS  Allproof Low Profile Fire Collar to suit 150mm pipe Stainless Steel

    ALLFC150.pdf ALLFC150.pdf(251 KB)

    ALLFC150.dxf ALLFC150.dxf(11203 KB)

    ALLFC150GALV Allproof Low Profile Fire Collar to suit 150mm pipe Galvanised Steel

    ALLFC150.pdf ALLFC150.pdf(251 KB)

    ALLFC150.dxf ALLFC150.dxf(11203 KB)

    Suitable For Fitting To:

    • Concrete, masonry, brick walls
    • Plasterboard walls
    • Concrete floors

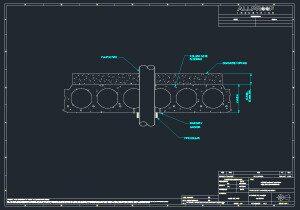

    • Hollow core construction floors



    Features:

    • Totally unaffected by water
    • Unique low profile design (25-80mm)
    • Tested on PVC socket connections for floor stack installations (40-100mm)
    • Stainless or galvanized steel case
    • Retro fitting - easy install slide tab
    • For use on various plastic pipes


    Installation Instructions:

    1. Ensure substrate around pipe is flat and free from obstructions.
    2. Open pipe collar and position around pipe.
    3. Slide tab through slot in pipe collar and fold back 180° to secure.
    4. Secure pipe collar into concrete by using M6 masonry anchors or expanding metallic bolts. Install pipe collars into plasterboard using expanding hollow core wall anchors. Do not use fixings which rely on plastic or nylon components for grip.
    5. Install only from underside on floor penetrations. Install pipe collar on both sides for wall penetrations.



    For test results please see our Fire Brochure literature.

    Fire-Penetration-Schedule.xlsx Fire-Penetration-Schedule.xlsx(13 KB)

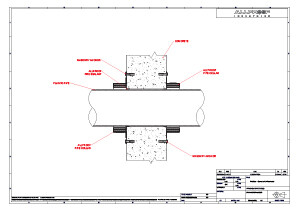

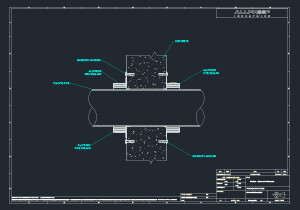

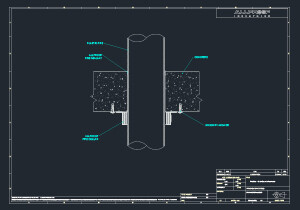

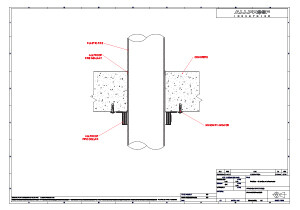

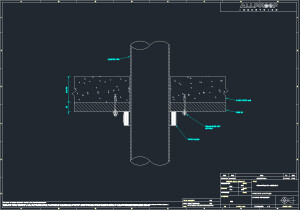

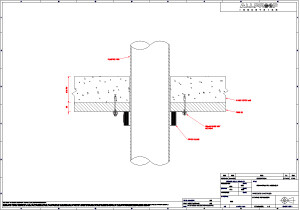

    Concrete Installation Details

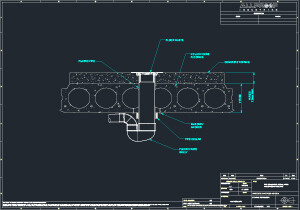

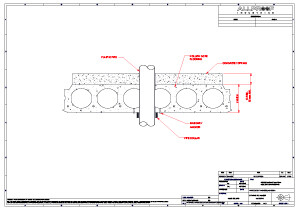

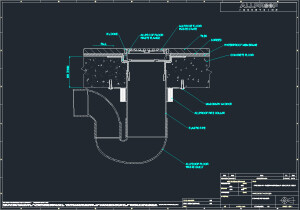

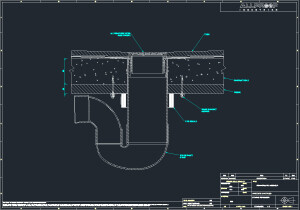

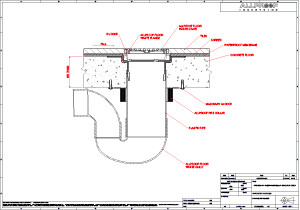

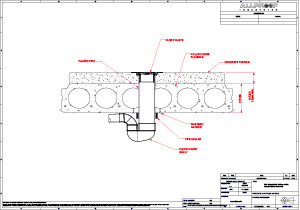

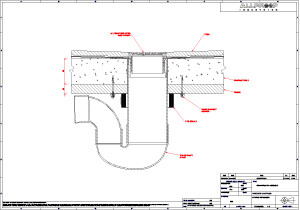

    Floor Waste Installation Details

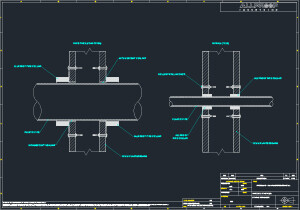

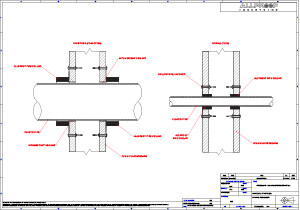

    19mm Plaster Board Installation Details

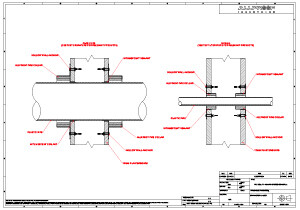

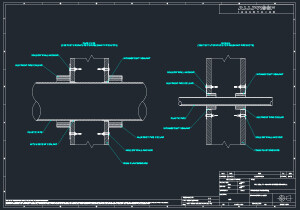

    13mm Plaster Board Installation Details

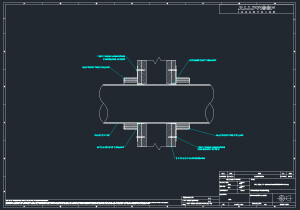

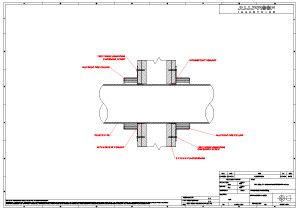

    2 X 13/16mm Plaster Board Installation Details



    Product Enquiry

    We love to help with technical questions and provide further product information, however please note that we don't provide costs direct to the market. For quotes and prices please direct your enquiry through your preferred installer and/or merchant. Please see our FAQ's for further information on this.
