Sureflow
-
- 80, 100 & 150mm pipe spigot outlets
- Solvent cement straight onto pipe
- Compatible with torch-on membranes

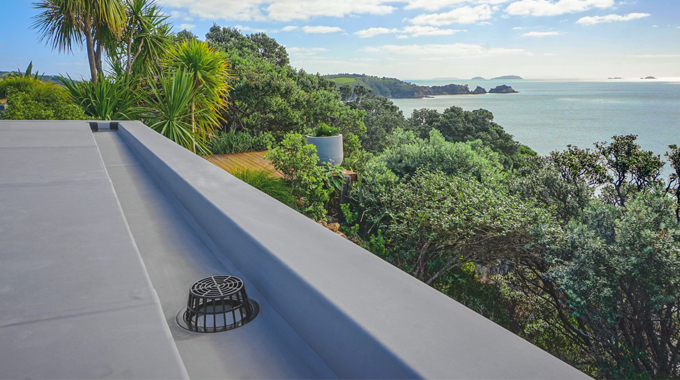

- Especially suitable for roofs and decks
- Base manufactured from PVC
- Available both as a drain and overflow
- Available with flat and dome grates
- Interchangeable rings and grates
- Plastic rings & grates UV resistant ASA or bronze
Dome
Flat
Overflow
Cleanout
Round Podium (supplied separately)
Square Podium (supplied separately)
80mm
80mm Clamping Collar
100mm
100mm Clamping Collar
150mm
150mm Clamping Collar
Please note the Bronze finish is only available on the flat grate.
Plastic
Bronze
80mm
Code Description .pdf File CAD File Sureflow80 80mm Membrane Clamp Dome Roof Drain
SUREFLOW 80.pdf(507 KB)
SUREFLOW 80.dwg(972 KB)Sureflow80 OFLOW 80mm Membrane Clamp Overflow SUREFLOW 80 OFLOW DF.pdf(765 KB) SUREFLOW 80 OFLOW.dwg(646 KB)Sureflow80 Flat 80mm Membrane Clamp Flat Roof Drain SUREFLOW 80 FLAT.pdf(579 KB) SUREFLOW 80 FLAT.dwg(709 KB)Sureflow80 Flat BR 80mm Membrane Clamp Flat Bronze Roof Drain SUREFLOW 80 FLAT BR.pdf(472 KB) SUREFLOW 80 FLAT BR.dwg(609 KB)Sureflow80 CC 80mm Sureflow Clamping Collar Drain SUREFLOW 80CC.pdf(446 KB) SUREFLOW 80 CC.dwg(608 KB)Sureflow80 PL 80mm Sureflow Planter Box Assembly SUREFLOW 80PL.pdf(502 KB) SUREFLOW 80 PL.dwg(663 KB)
100mm
Code Description .pdf File CAD File Sureflow100 100mm Membrane Clamp Dome Roof Drain SUREFLOW 100.pdf(510 KB) SUREFLOW 100.dwg(961 KB)Sureflow100 OFLOW 100mm Membrane Clamp Overflow SUREFLOW 100 OFLOW.pdf(615 KB) SUREFLOW 100 OFLOW.dwg(643 KB)Sureflow100 Flat 100mm Membrane Clamp Flat Roof Drain SUREFLOW 100 FLAT.pdf(581 KB) SUREFLOW 100 FLAT.dwg(703 KB)Sureflow100 Flat BR 100mm Membrane Clamp Flat Bronze Roof Drain SUREFLOW 100 FLAT BR.pdf(483 KB) SUREFLOW 100 FLAT BR.dwg(604 KB)Sureflow100 CC 100mm Sureflow Clamping Collar Drain SUREFLOW 100CC.pdf(445 KB) SUREFLOW 100 CC.dwg(585 KB)Sureflow100 PL 100mm Sureflow Planter Box Assembly SUREFLOW 100PL.pdf(495 KB) SUREFLOW 100 PL.dwg(612 KB)
150mm
Code Description .pdf File CAD File Sureflow150 150mm Membrane Clamp Dome Roof Drain SUREFLOW 150.pdf(497 KB) SUREFLOW 150.dwg(951 KB)Sureflow150 OFLOW 150mm Membrane Clamp Overflow SUREFLOW 150 OFLOW.pdf(609 KB) SUREFLOW 150 OFLOW.dwg(685 KB)Sureflow150 Flat 150mm Membrane Clamp Flat Roof Drain SUREFLOW 150 FLAT.pdf(574 KB) SUREFLOW 150 FLAT.dwg(727 KB)Sureflow150 Flat BR 150mm Membrane Clamp Flat Bronze Roof Drain SUREFLOW 150 FLAT BR.pdf(461 KB) SUREFLOW 150 FLAT BR.dwg(625 KB)Sureflow150 CC 150mm Sureflow Clamping Collar Drain SUREFLOW 150CC.pdf(467 KB) SUREFLOW 150 CC.dwg(645 KB)Sureflow150 PL 150mm Sureflow Planter Box Assembly SUREFLOW 150PL.pdf(527 KB) SUREFLOW 100 PL.dwg(612 KB)
